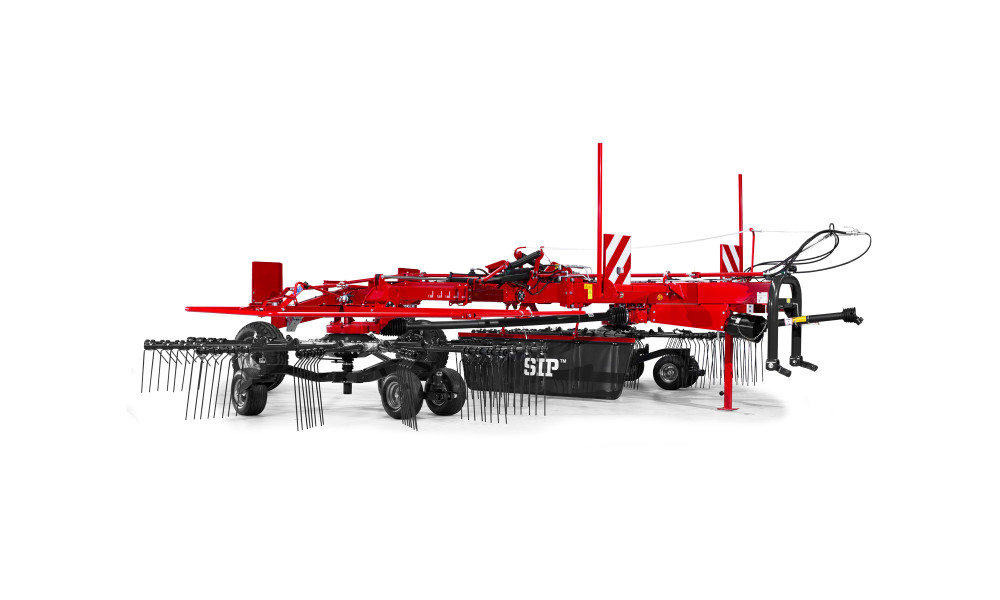

STAR 850/26T rake - Trailed Central swath - Wide angle PTO
Product No. : SIPSTAR850-26CV
Pictures may not reflect the exact model and are for reference purposes only.
| Required HP | 55 HP |
| Working width | 7,24 - 8,30 m |
| Number of rotors | 2 |
| Rotor diameter | 11,65 ft |
| Transport height | 13,09 ft |
| Transport width | 9,81 ft |
| PTO speed | 540 RPM |
| Capacity | 10,50 ha/h |
| Tire size | 10.0/75 - 15.3 |
| Swath width (min - max) | 1,15 - 2,10 m |
| Number of arm per rotor | 13 |
| Number of teeth by arm | 4 |
| Rotation speed | 400 - 500 RPM |
| Qty | Description |
|---|---|
| 1 | STAR 850/26T ROTARY RAKE |
| 1 | 2 ROTATING WHEEL - REAR/ROTOR |
| 2 | WHEEL 10.5/75 x 15 AW ET-16 |
| 1 | 7-PINS PLUG - US/CA 500MM |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 1 | 156.00 | 48.00 | 48.00 | PO | 4,490.00 | LBS | |
| Total | 4,490.00 | LBS | |||||
