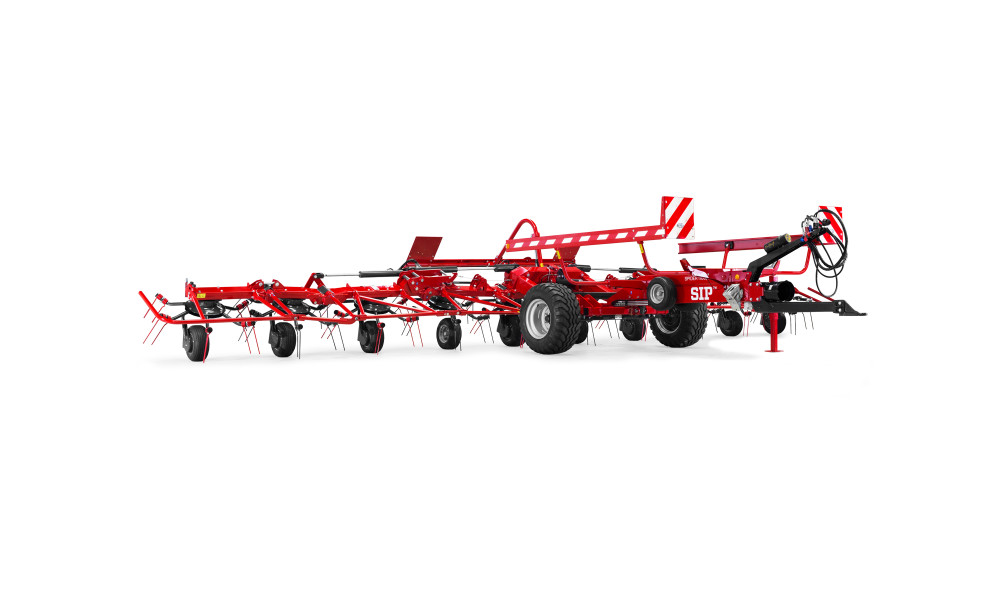

SPIDER 1100/10T Tedder - Trailed
Product No. : SIPSPIDER1100/10T
Pictures may not reflect the exact model and are for reference purposes only.
| Working width | 10,80 m |
| Required HP | 46 HP |
| Number of rotors | 10 |
| Rotor diameter | 1,45 m |
| Transport height | 2,45 m |
| Transport width | 2,98 m |
| Transport length | 5,10 m |
| Rotor rotation speed | 185 RPM |
| Capacity | 12 ha/h |
| Angle adjustment | 15 - 21° |
| Tire size | Rotors: 16x6.50 - 8 / Middle rotors (2x): 18x8.50 - 8 / Transport frame: 11.5/80x15 |
| Number of teeth by rotor | 6 |
| PTO speed | 450-540 RPM |
| Qty | Description |
|---|---|
| 1 | SPIDER 1100/10T TEDDER |
| 2 | WHEEL 11.5/80 |
| 1 | ANTI WRAP SHIELDS (SPIDER 1100) |
| 1 | LIGHTING EQUIPMENT (INCLUDED) |
| 1 | HYDRAULIC WORKING ANGLE AJUSTMENT |
| 1 | 7-PINS PLUG - US/CA 500MM |
| 1 | PIVOTING DRAWBAR WITH PIN |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 6,335.00 | LBS | ||||||
| Total | 6,335.00 | LBS | |||||
