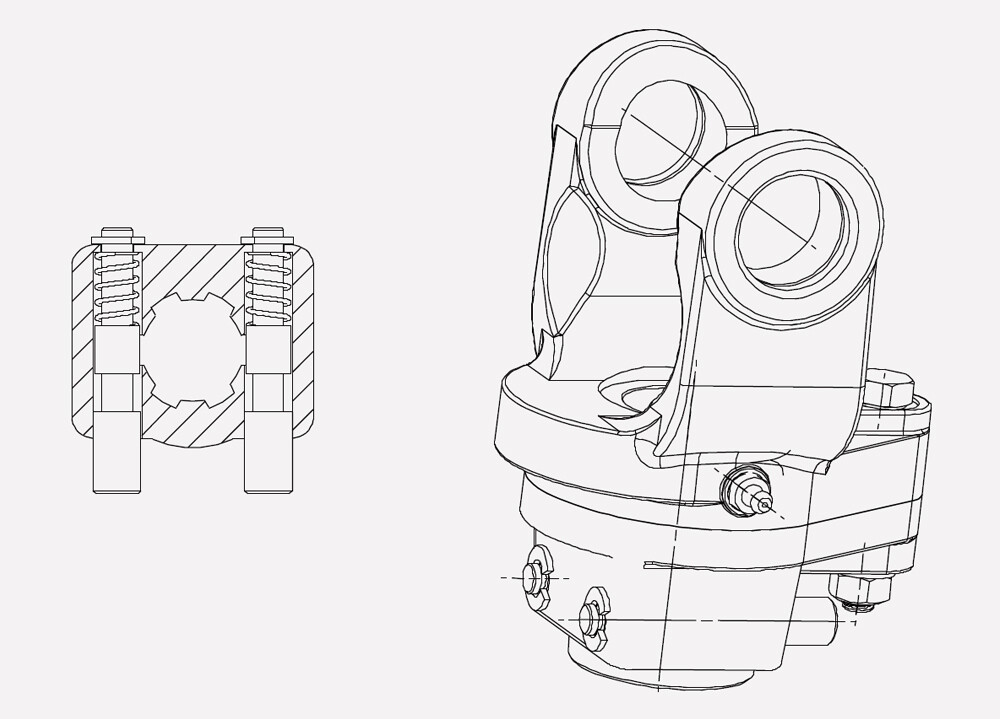

Shear Bolt Torque Limiter S10 1-3/8"-6 / 4000Nm
Product No. : MT10SB
Pictures may not reflect the exact model and are for reference purposes only.
| Serie | 10 |
| Max torque | 4000 NM |

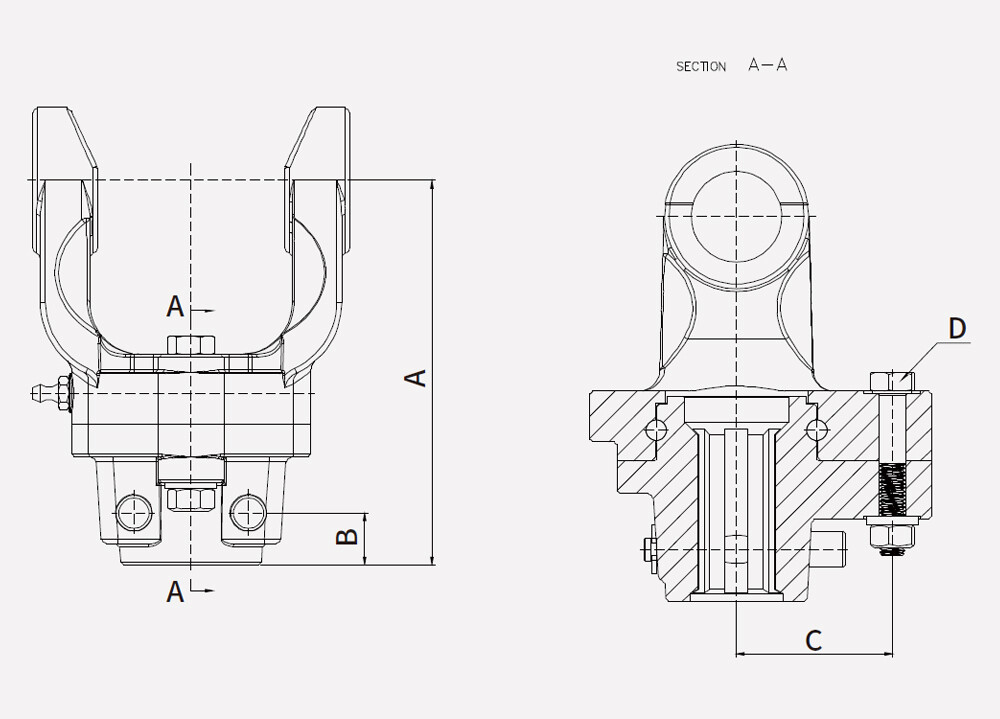

| Dimension A A1 A2 | 161 MM |
| Dimension B | 20 MM |
| Shear bolt dimension | M12X60 |
| Dimension C | 57 MM |
| Cross dimension | 41 X 118 MM |
| Dimension D | M12X60 |
| Brand | MTI |
| Shaft profil | 1-3/8" -6 |
| Style | Shear bolt |
| Type | Bondioli and equivalent |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 12.00 | LBS | ||||||
| Total | 12.00 | LBS | |||||
