Complet PTO Shaft-Size 10-760MM 1-3/8"-6 X 1-3/4"-20 Shear Bolt
Product No. : MT100076FT07SB210
Pictures may not reflect the exact model and are for reference purposes only.
| Serie | 10 |
| Details | Yoke equipment side : MT10SBE |
| Cross dimension | 41 X 118 MM |
| Length (center to center cross kit) | 30" |
| Yoke (equipment side) | 1-3/4" -20 , Shear bolt |
| Yoke (tractor side) | 1-3/8" -6 , Quick disconnect |
| Brand | MTI |
| Shaft profil | Star |
| Rated shaft power | 540 RPM : 148 HP , 1000 RPM : 227 HP |
| Type | For snowblower |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 63.00 | LBS | ||||||
| Total | 63.00 | LBS | |||||
Accessories and parts
Series 10 Cross and Bearing Kit 41mm X 118mm
Shear Bolt Torque Limiter S10 1-3/4"-20 / 4000Nm

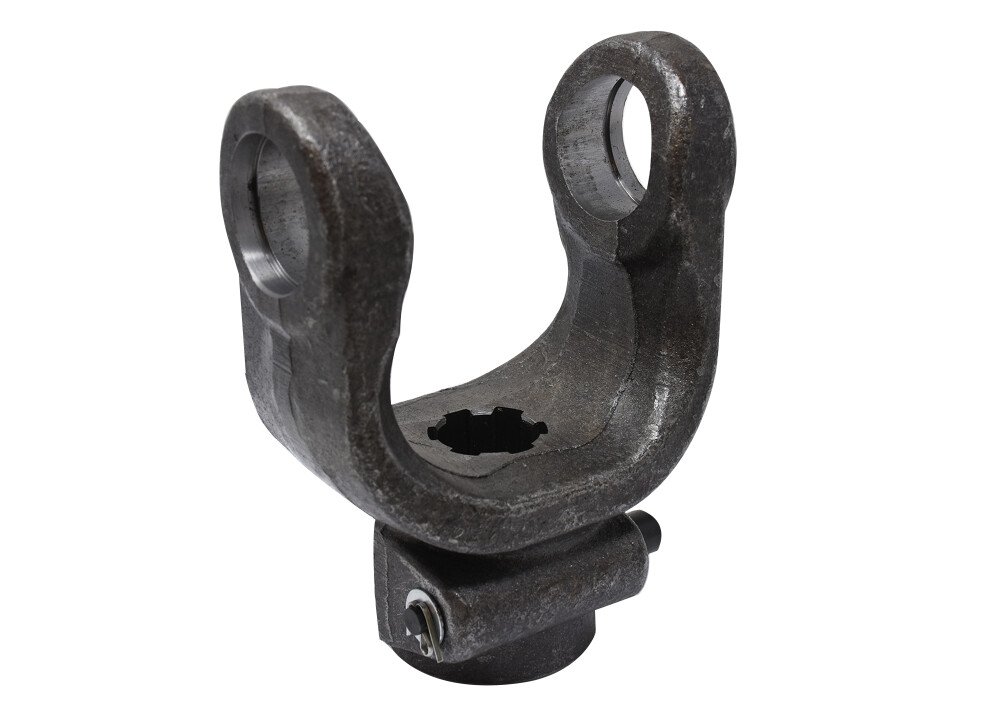

Quick Disconnect Yoke S10 1-3/8"-6

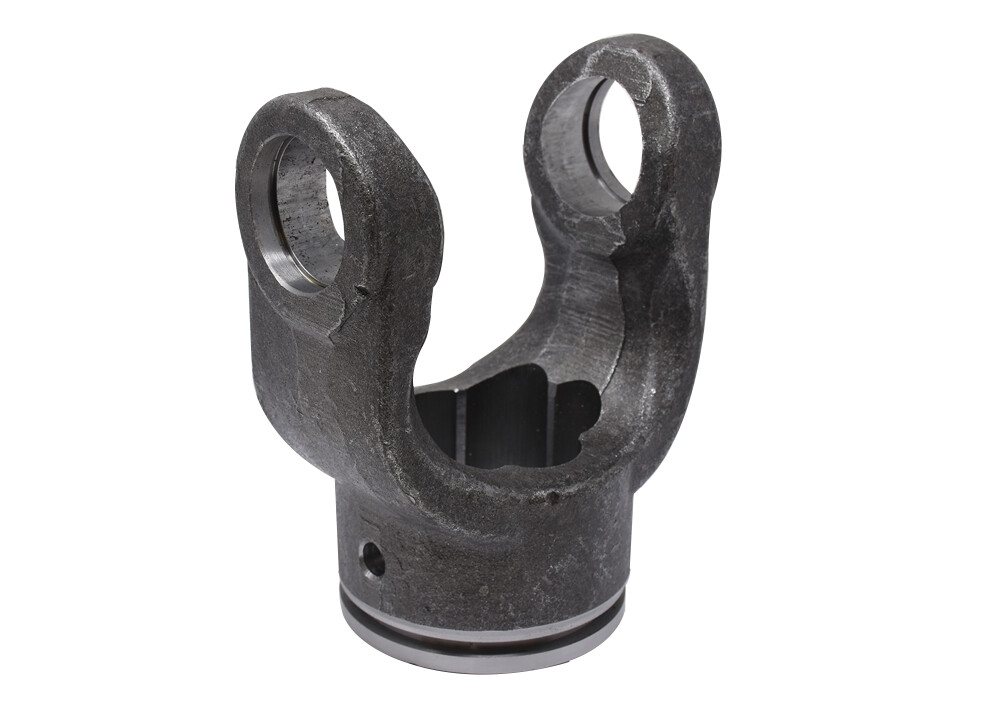

Outer Yoke S10 Star Profile

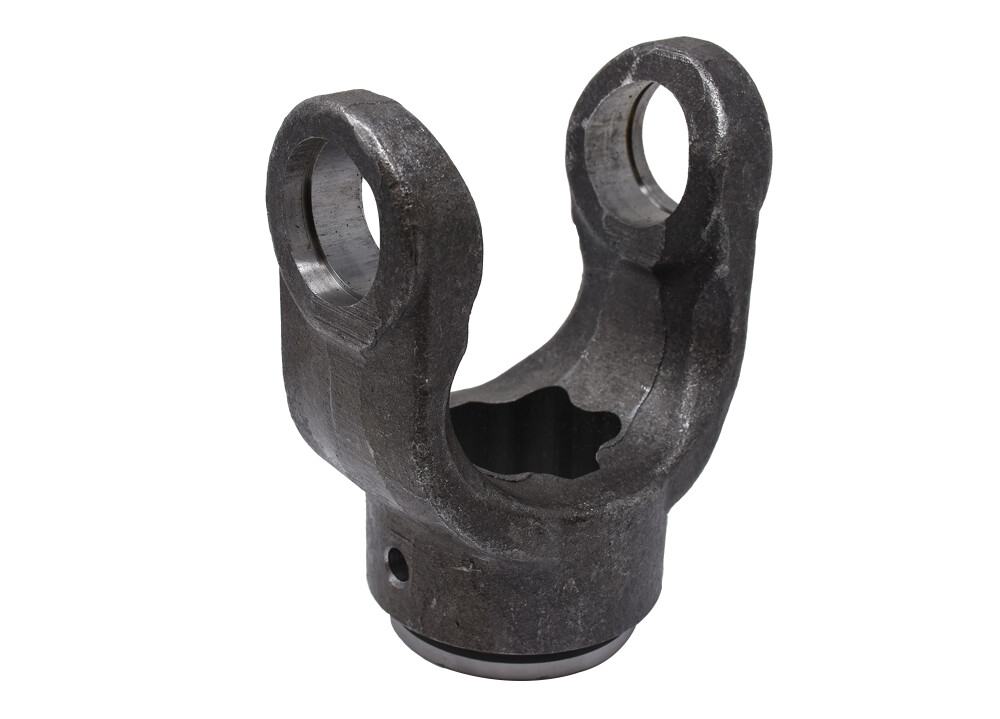

Inner Yoke - S10 Star Profile

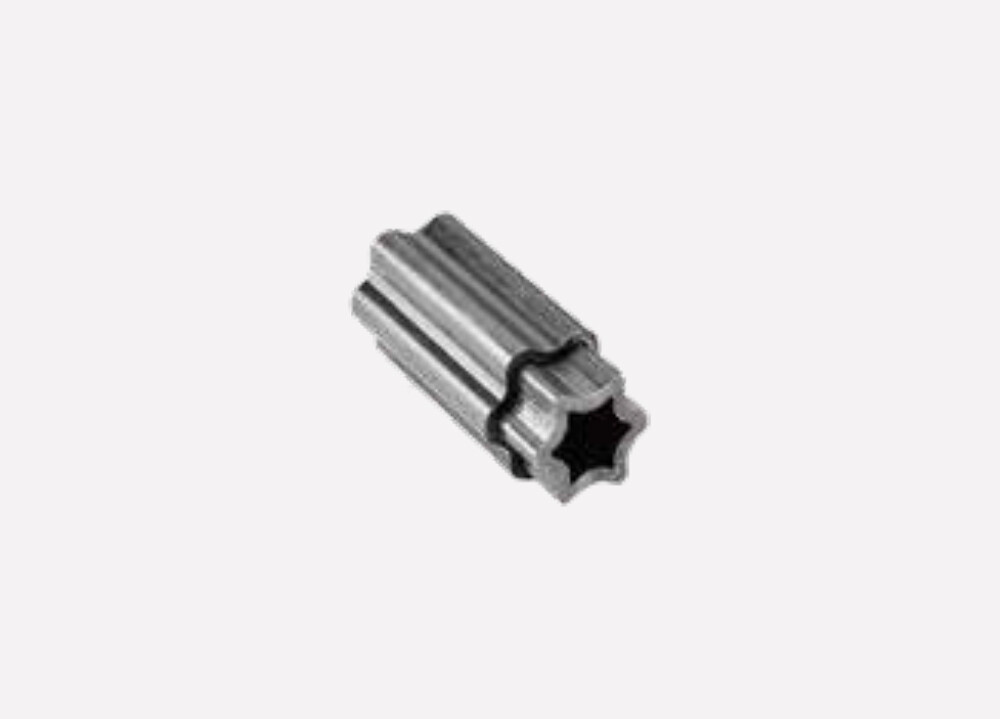

Inner Tube S10 Star 56.4mmm x 6mm X 544mm
Outer Tube S10 Star 67.5mmm x 5mm X 544mm
Complet PTO Shield for PTO Series 10
