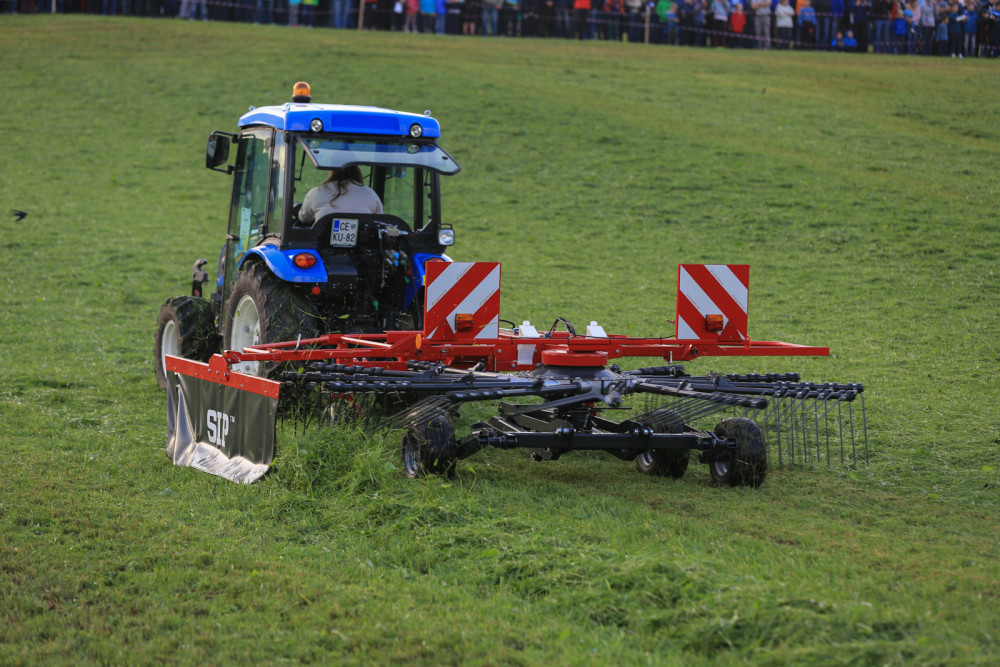

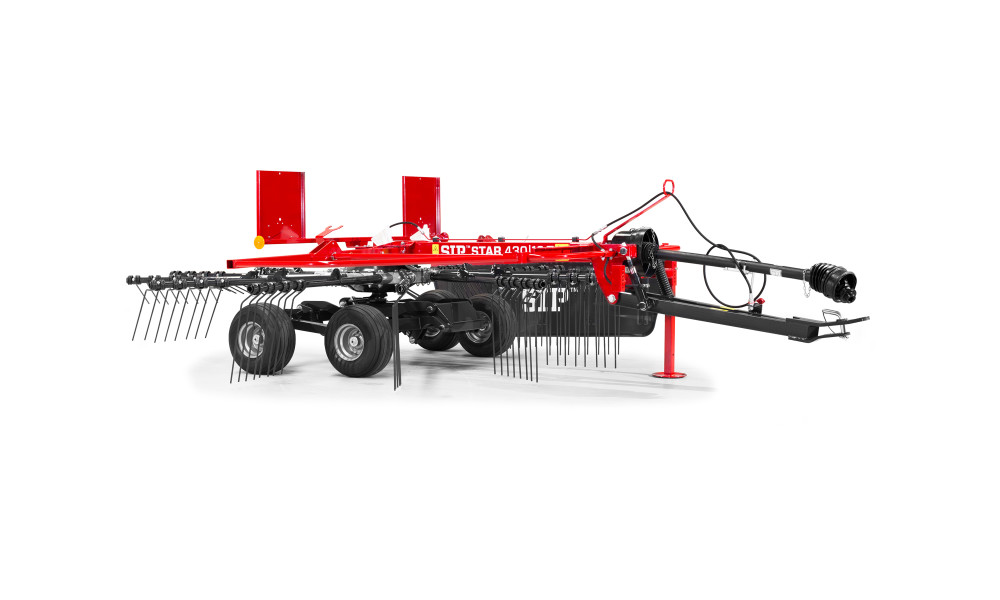

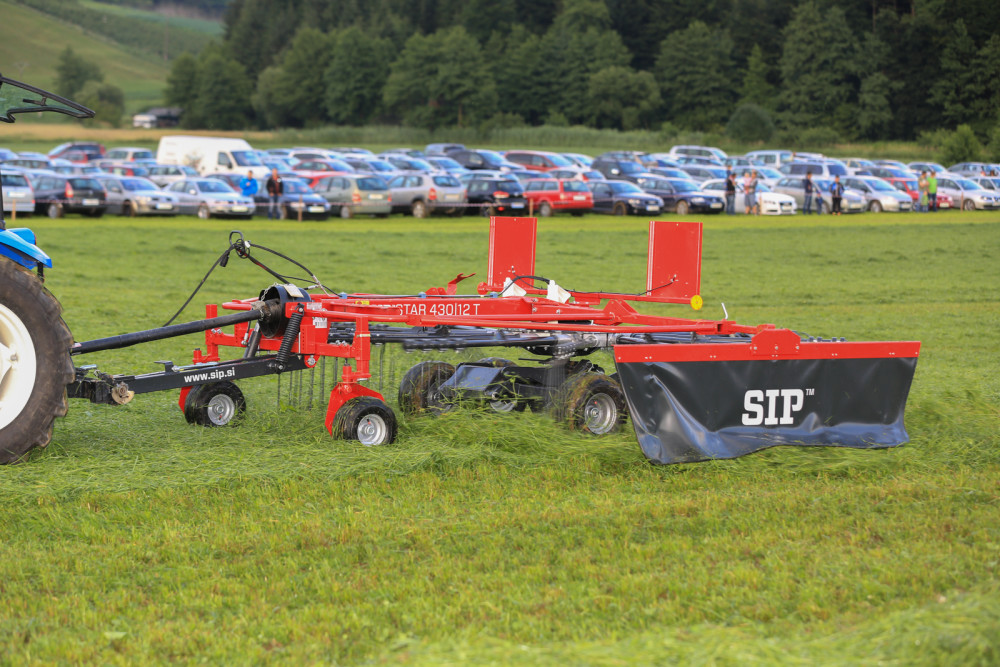

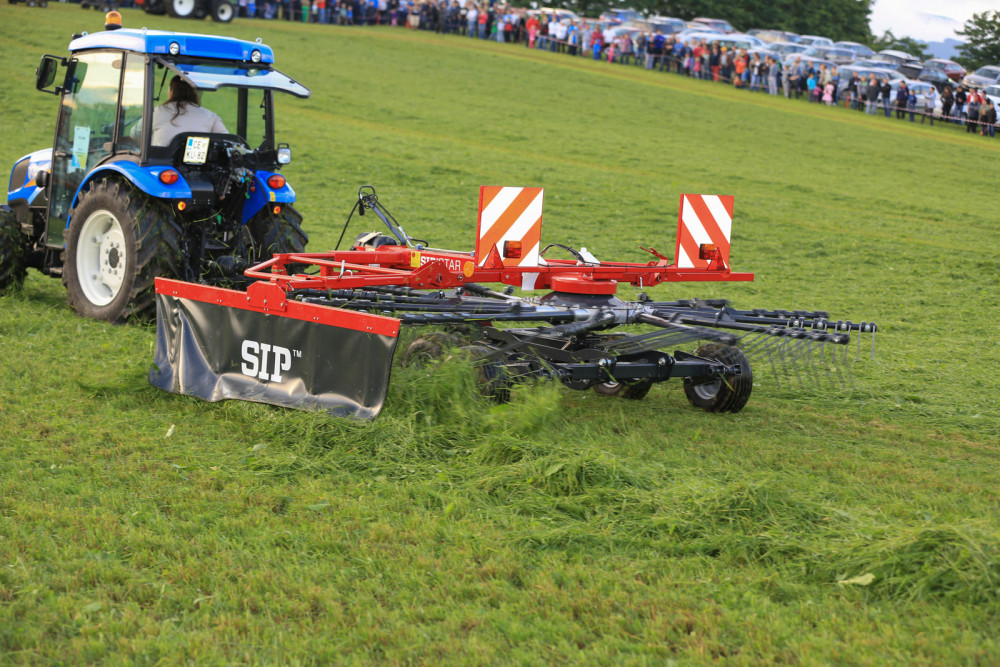

STAR 430/12T rake - Trailed Wide angle PTO Shaft
Product No. : SIPSTAR430-12VCV
Pictures may not reflect the exact model and are for reference purposes only.
| Required HP | 20 HP |
| Working width | 4,30 m |
| Number of rotors | Single Rotor |
| Rotor diameter | 10,96 ft |
| Transport height | 3,94 ft |
| Transport width | 6,82 ft |
| PTO speed | 540 RPM |
| Capacity | 5,50 ha/h |
| Tire size | 18x8.50 - 8 |
| Swath width (min - max) | 0,70 - 1,20 m |
| Number of arm per rotor | 12 |
| Number of teeth by arm | 4 |
| Rotation speed | 350 - 450 RPM |
| Qty | Description |
|---|---|
| 1 | STAR 430/12T RAKE |
| 1 | TOWING EYE FOR DRAWBAR |
| 1 | 7-PINS PLUG - US/CA 500MM |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 1 | 92.00 | 75.00 | 31.00 | PO | 1,565.00 | LBS | |
| Total | 1,565.00 | LBS | |||||
