SPIDER 1500/14T PRO Tedder
Product No. : SIPSP1500TPROCHAT

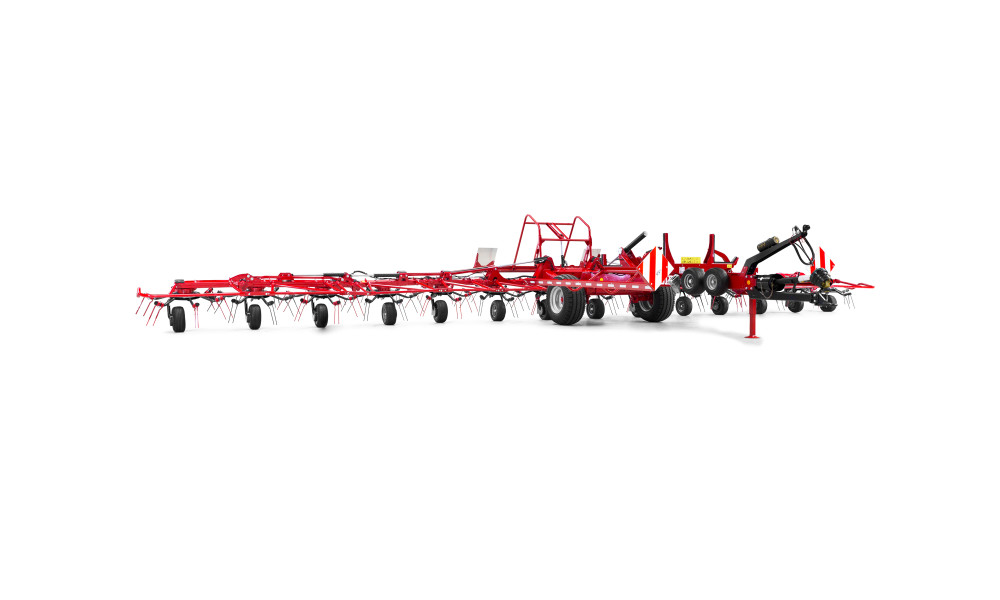

Pictures may not reflect the exact model and are for reference purposes only.
| Working width | 14,80 m |
| Required HP | 53 HP |
| Number of rotors | 14 |
| Rotor diameter | 1,45 m |
| Transport height | 2,51 m |
| Transport width | 2,98 m |
| Transport length | 6,25 m |
| Rotor rotation speed | 210 RPM |
| Capacity | 16,00 ha/h |
| Angle adjustment | 15 - 21° |
| Tire size | Rotors: 16x6.50 - 8 / Middle rotors (2x): 16x9,50 - 8 / Transport frame: 11.5/80x15 |
| Number of teeth by rotor | 6 |
| PTO speed | 450-540 RPM |
| Qty | Description |
|---|---|
| 1 | SPIDER 1500/14T TEDDER |
| 2 | WHEEL 15.0/55-17 AW 10 PR |
| 1 | ANTI-WRAP SHIELDS WHEELS 16/6.50-8 |
| 1 | HYDRAULIC WORKING ANGLE ADJUSTMENT |
| 1 | WALTERSCHEID SAFETY CLUTCH |
| 1 | 7-PINS PLUG - US/CA 500MM |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 7,040.00 | LBS | ||||||
| Total | 7,040.00 | LBS | |||||
