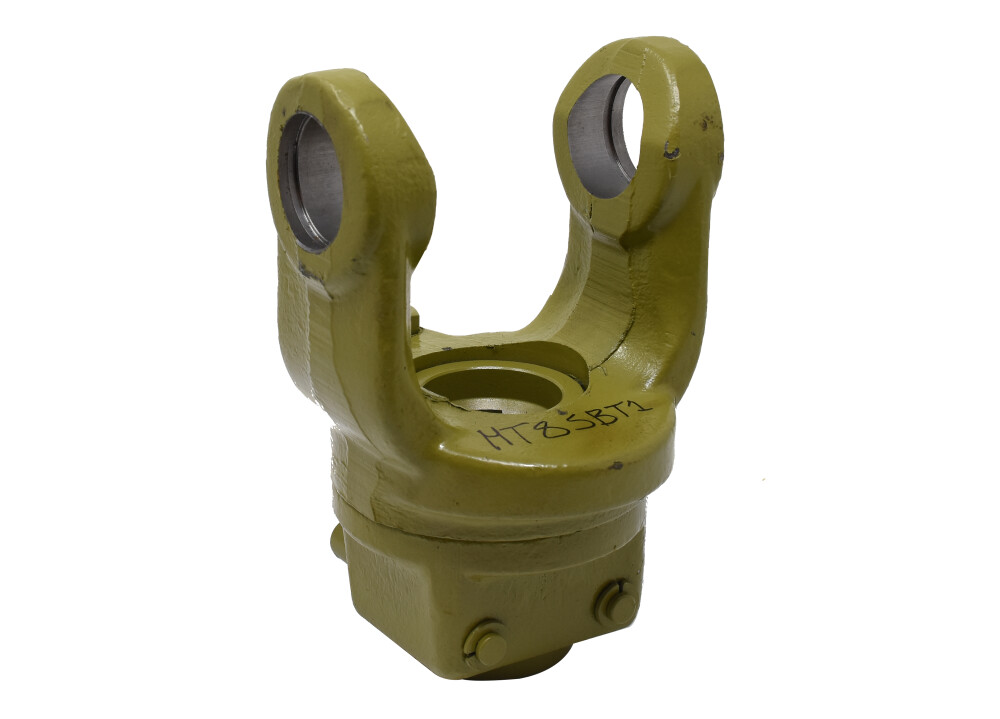

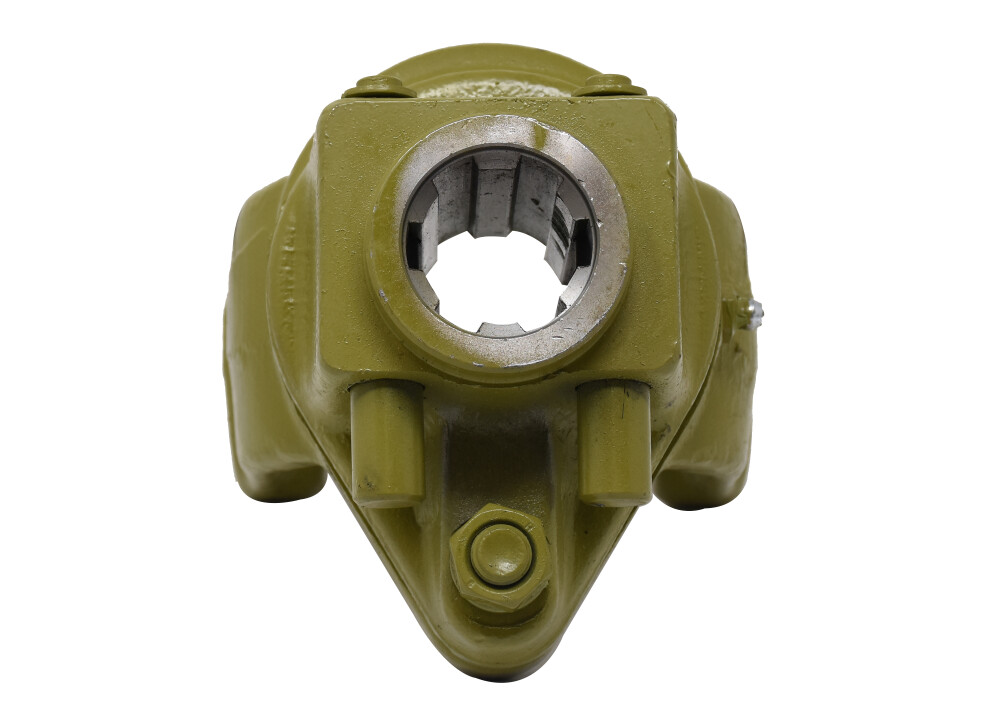

Shear Bolt Torque Limiter S8 1-3/8" -6 / 3000Nm
Product No. : MT8SBT1
Pictures may not reflect the exact model and are for reference purposes only.
| Serie | 8 |
| Max torque | 3000 NM |

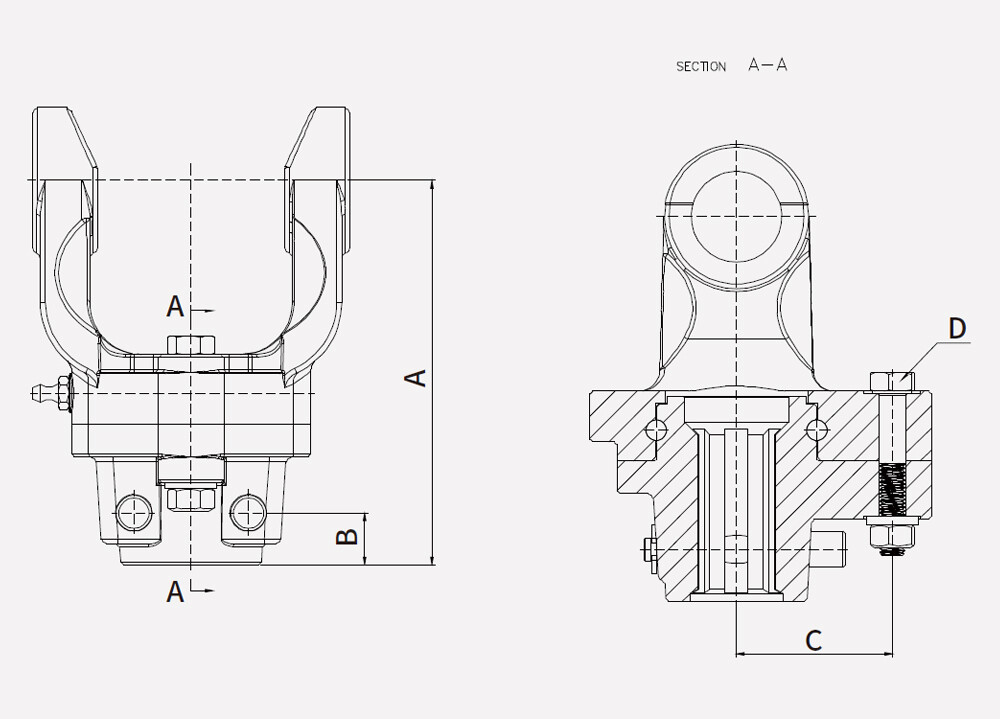

| Dimension A A1 A2 | 148 MM |
| Dimension B | 20 MM |
| Shear bolt dimension | M12X60 |
| Dimension C | 57 MM |
| Cross dimension | 35 X 106 MM |
| Dimension D | M12X60 |
| Brand | MTI |
| Shaft profil | 1-3/8" -6 |
| Style | Shear bolt (quick disconnect) |
| Type | Bondioli and equivalent |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 10.00 | LBS | ||||||
| Total | 10.00 | LBS | |||||
