Shear Bolt Torque Limiter S6 1-3/8"-6 / 2500Nm
Product No. : MT6SBT1
Pictures may not reflect the exact model and are for reference purposes only.
| Serie | 6 |
| Max torque | 2500 NM |

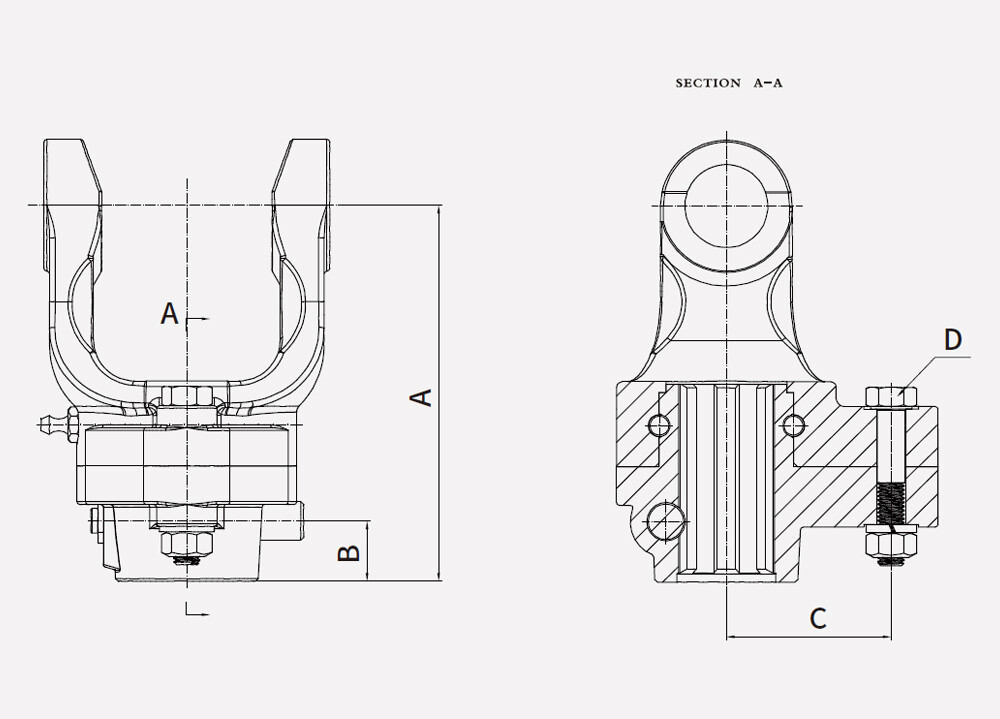

| Dimension A A1 A2 | 137 MM |
| Dimension B | 22 MM |
| Shear bolt dimension | M10X55 |
| Dimension C | 55 MM |
| Cross dimension | 30.2 X 91.4 MM |
| Dimension D | M10X55 |
| Brand | MTI |
| Shaft profil | 1-3/8" -6 |
| Style | Shear bolt (quick disconnect) |
| Type | Bondioli and equivalent |
| Qty | Description |
|---|---|
| Substitute :606606001 |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 7.00 | LBS | ||||||
| Total | 7.00 | LBS | |||||
