Complet PTO Shaft-Size 8-760MM 1-3/8"-6 X 1-3/8"-6 Shear Bolt
Product No. : MT108076FT07SB207
Pictures may not reflect the exact model and are for reference purposes only.
| Serie | 8 |
| Cross dimension | 35 X 106 MM |
| Length (center to center cross kit) | 30" |
| Yoke (equipment side) | 1-3/8" , Shear bolt |
| Yoke (tractor side) | 1-3/8" -6 , Quick disconnect |
| Brand | MTI |
| Shaft profil | Triangular |
| Rated shaft power | 540 RPM : 90 HP , 1000 RPM : 136 HP |
| Type | For snowblower |
| Qty | Description |
|---|---|
| IMPLEMENT YOKE 1-3/8" Z6 | |
| SHEAR BOLT WITH 2 TAPER PIN | |
| BOLT MM12x60 |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 1 | 29.50 | 4.00 | 4.00 | PO | 48.00 | LBS | |
| Total | 48.00 | LBS | |||||
Accessories and parts
Series 8 Cross and Bearing Kit 35mm X 106.5mm

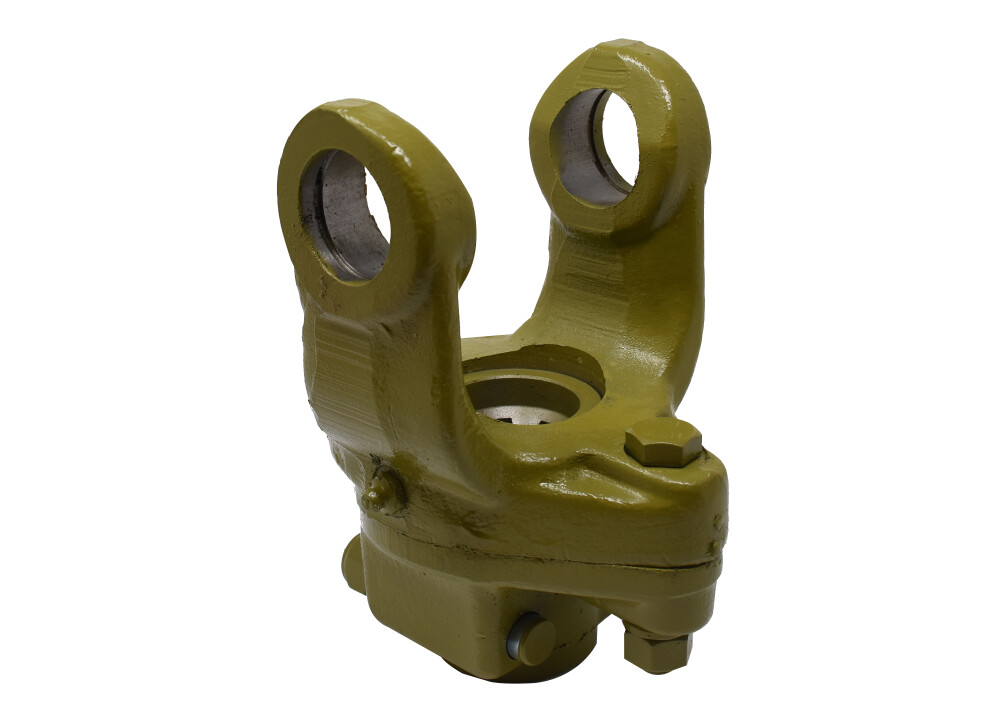

Shear Bolt Torque Limiter S8 1-3/8" -6 / 3000Nm

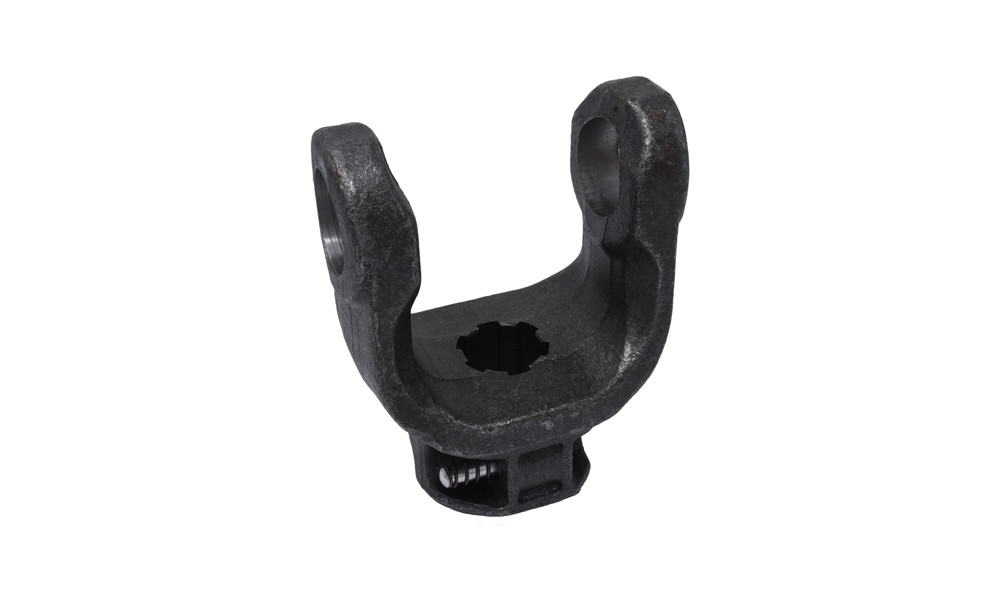

Quick Disconnect Yoke S8 1-3/8"-6

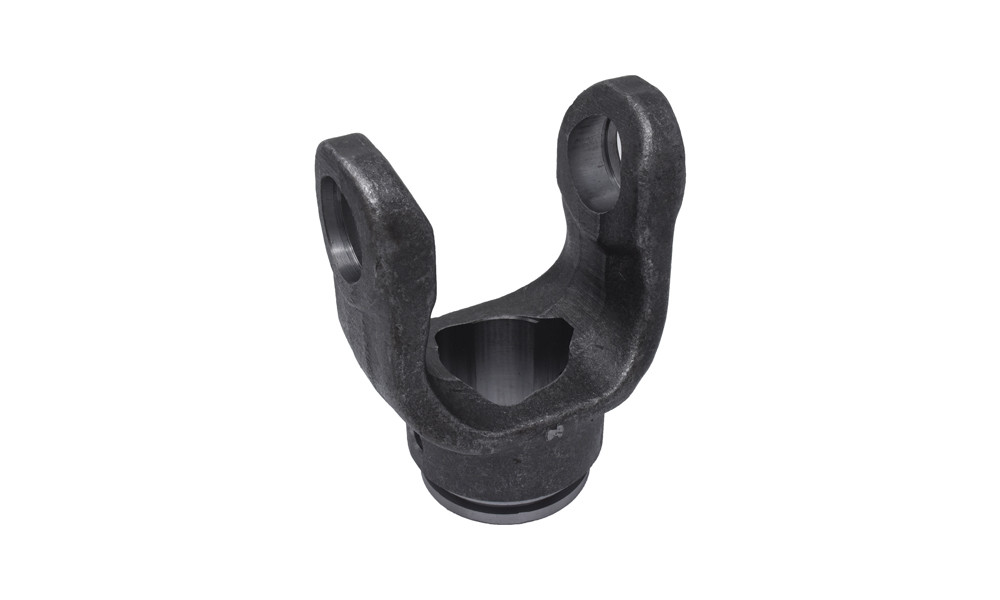

Outer Yoke S8 Trilobe
Inner Yoke - S8 Trilobe

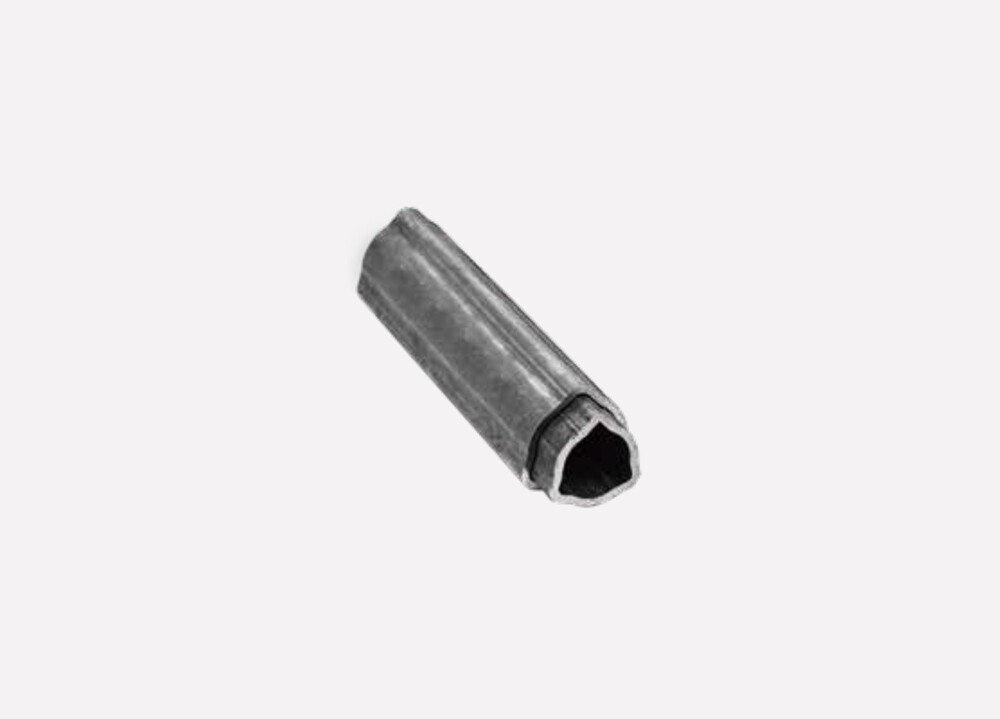

Inner Tube S8 Trilobe 54mm X 5mm X 1000mm
Outer Tube S8 Trilobe 63mm X 4mm X 1000mm
Complet PTO Shield for PTO Series 8
PTO Shaft display stand
