Complet PTO Shaft-Size 5-750MM 1-3/8"-6 X 1-3/8"-6 Shear Bolt
Product No. : MT105075FT07SB207
Pictures may not reflect the exact model and are for reference purposes only.
| Serie | 5 |
| Details | Yoke equipment side : MT5SB2 |
| Cross dimension | 30.2 X 79.4 MM |
| Length (center to center cross kit) | 30" |
| Yoke (equipment side) | 1-3/8" -6 , Shear bolt |
| Yoke (tractor side) | 1-3/8" -6 , Quick disconnect |
| Brand | MTI |
| Shaft profil | Triangular |
| Rated shaft power | 540 RPM : 47 HP , 1000 RPM : 75 HP |
| Type | For snowblower |
| Qty | Description |
|---|---|
| IMPLEMENT YOKE 1-3/8" Z6 | |
| SHEAR BOLT WITH 2 TAPER PIN | |
| 10MM BOLT |
| Qty | Length | Width | Height | UM Format | Weight | UM Weight | |
|---|---|---|---|---|---|---|---|
| 1 | 29.50 | 4.00 | 4.00 | PO | 31.00 | LBS | |
| Total | 31.00 | LBS | |||||
Accessories and parts
Series 5 Cross and Bearing Kit 30.2mm X 79.4mm
Shear Bolt Torque Limiter S5 1-3/8"-6 / 2100Nm

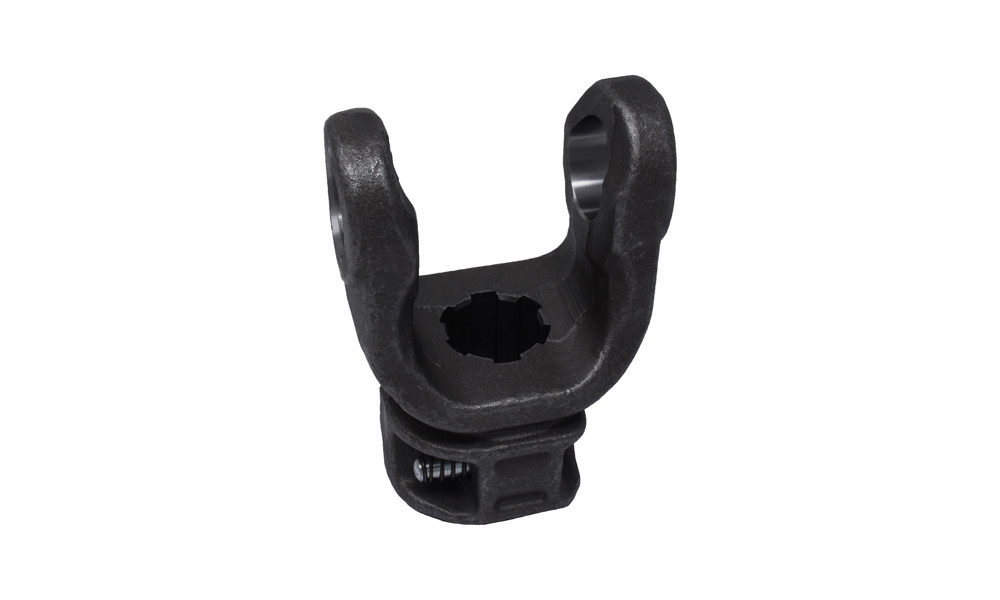

Quick Disconnect Yoke S5 1-3/8"-6

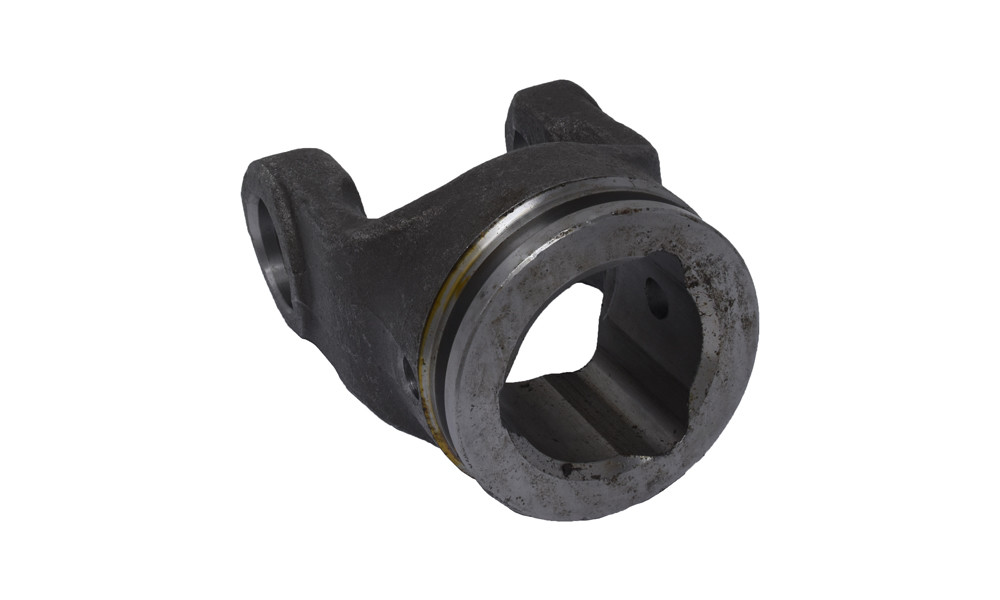

Outer Yoke S5 Trilobe

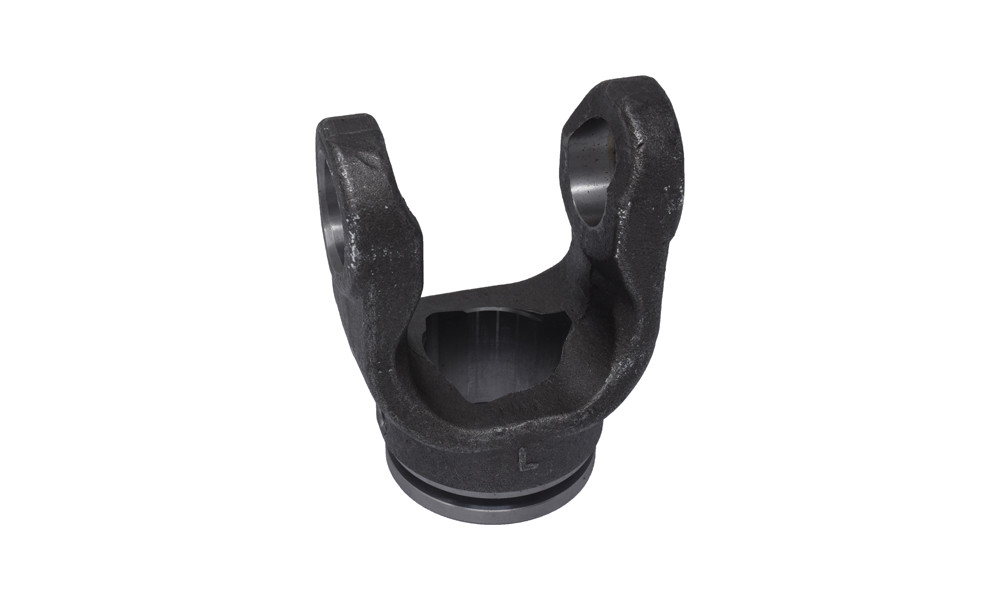

Inner Yoke - S5 Trilobe

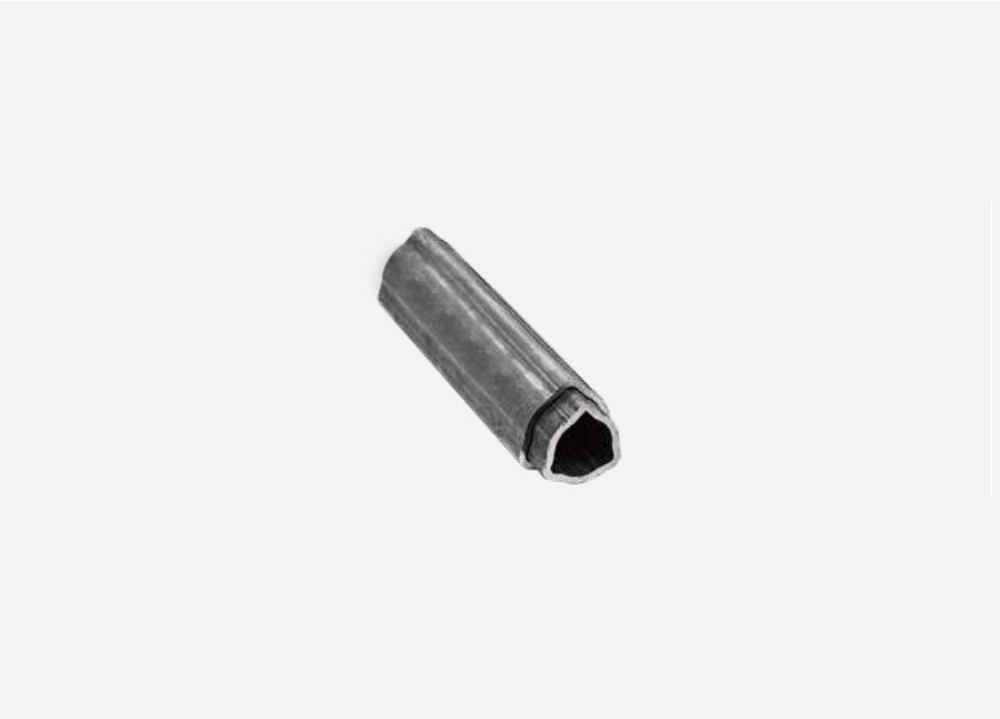

Inner Tube S6 Trilobe 45mm X 4mm X 1000mm

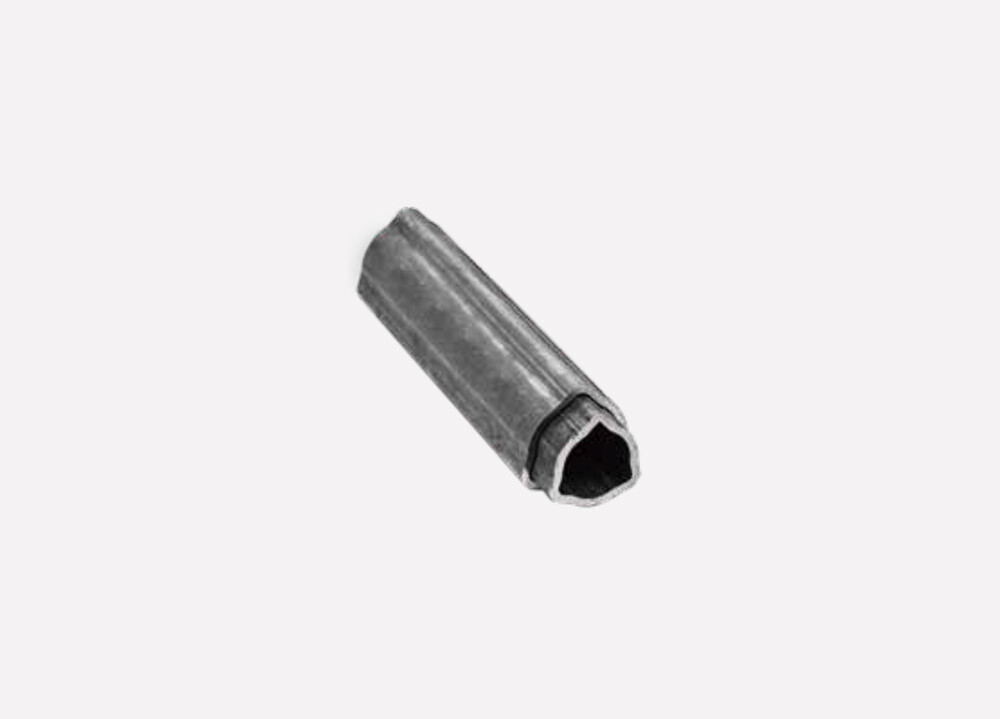

Outer Tube S5 Trilobe 51,3mm X 2,9mm X 1000mm
Complet PTO Shield for PTO Series 5

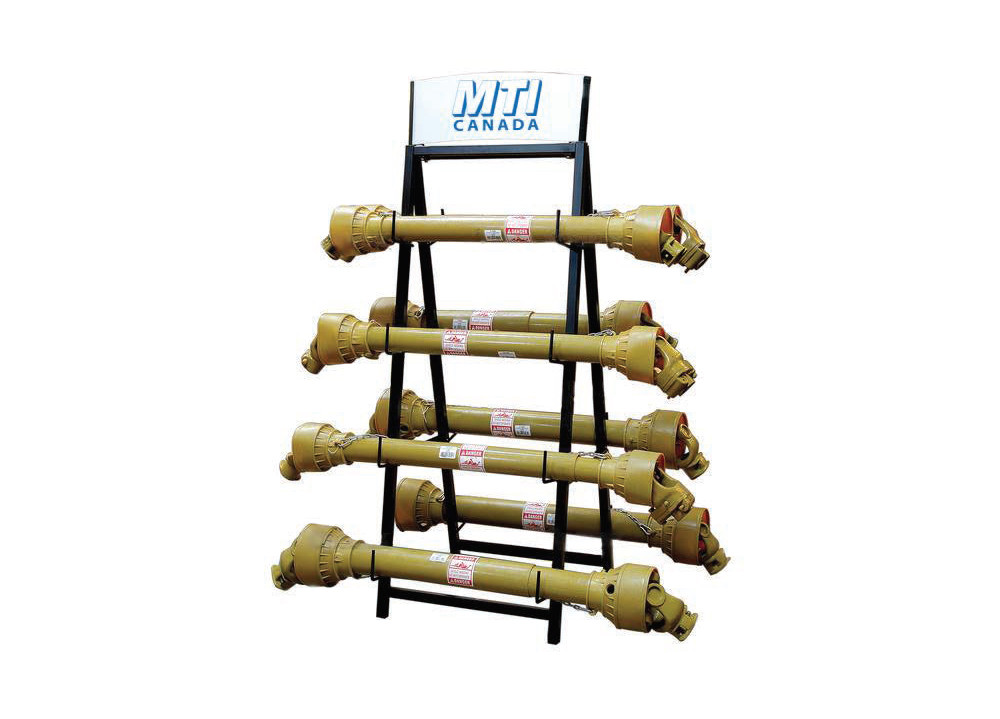

PTO Shaft display stand
